Encoder
Prodcuts Encoder    Share
  • Overview
  • Features
  • Configuration
  • Functions

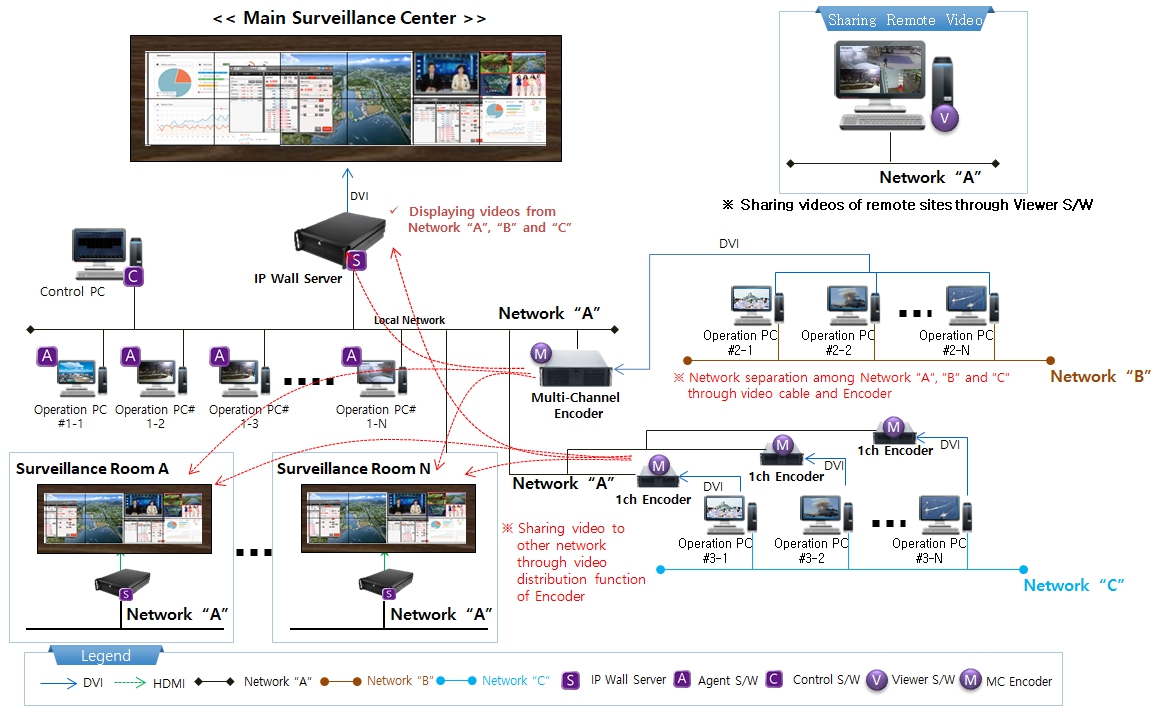

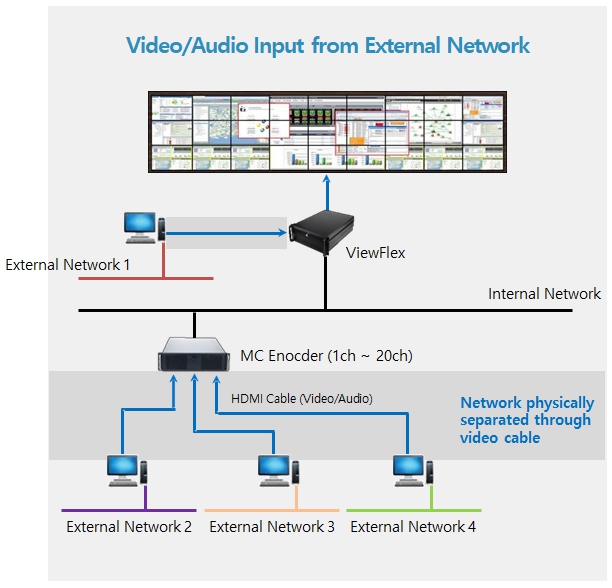

ViewFlex Encoder is a system that receives video from non-IP video equipment (TV Set-top box, VTR, PC of external network, etc.) through a monitor cable or video cable and transmits the video to IP Wall Server via network. ViewFlex supports transmission of the remote video of external network to Surveillance Center.

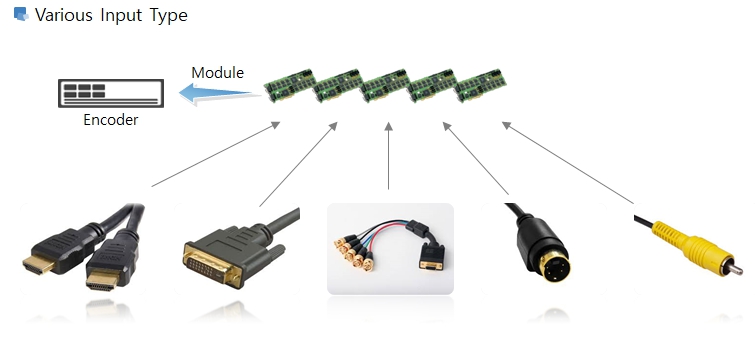

ViewFlex Encoder supports various input signals such as RGB, DVI, HDMI, Composite and S-Video in modular type, and can individually configure the resolution and frame rate for each input video.

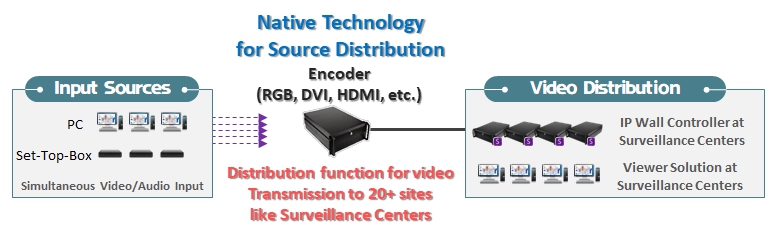

ViewFlex Encoder is equipped with high-performance distribution modules with its own video distribution capability, so it is possible to simplify system configuration, improve compatibility and operational stability and provide more convenient maintenance and scalability.

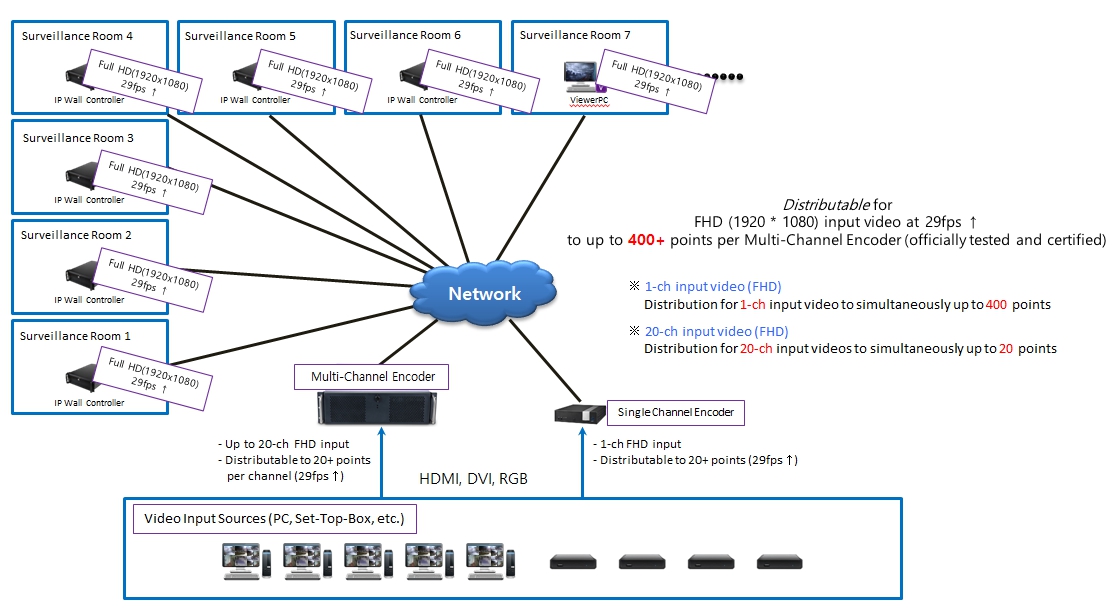

ViewFlex Encoder can stably distribute videos to up to 400 or more points at least 29 fps per device through its own video distribution function. (Original source: Full HD 1920 * 1080)



Video Transmission
■
IP encoding (H.264/MUPEG for video and G.711/AAC for audio) to transmit non-IP input contents via RGB DVI, HDMI, Video, etc. to IP Video Wall Controller (Server)
■
Encoding up to 20 channels (FHD video) to transmit via IP network (1920*1080 - 352*240, 30fps, 60fps)
■
Simultaneous transmission to many IP Video Wall
■
Transmitting non-IP videos (connected by RGB, DVI, HDMI and DP Composite cables) as well as videos of PC monitor and IP CCTV to a Viewer of user device via IP network
■
Video transmission of media contents (video, image. PPT, etc.) other than IP and non-IP live contents
■
Controller can choose video to be transmitted
■
Users can choose channel at user device
■
Possible to transmit single video in various resolutions
Virtualization
■
Virtualization for PC monitor
■
Selectable for functions of virtualization or encoding
■
Virtualization for FHD monitor of max. 8 channels just with connection of 1 graphic adapter and admin monitor
■
Transmitting videos of all virtualized PC monitors to IP Video Wall Sever simultaneously
■
Selectable for web browser, C/S program or video program on virtualized PC monitor
■
Cropping function that recognizes only a designated area of each monitor screen as a channel
Scalability
■
Input available for up to 20 FHD or 64 SD channels per Encoder
■
Stable distribution (sharing) of input videos to 20+ points at 29fps
■
Modular type to support various inputs like RGB, DVI, HDMI, Composite, 3G-SDI, etc.
Hardware Specification
■
CPU : Intel 13 4-Core 3.0GHz or better (*Industrial board with embedded CPU)
■
Memory : DDR, 8GB or bigger (*Industrial board with embedded CPU)
■
HDD : 500GB or bigger (SSD 32GB for 1-channel Encoder)
■
Network : 10/100/1000Mbps (2 ports)
■
O/S : Windows 10 Enterprise
■
Power : AC110V - 220V (free voltage)
