IP Wall

Prodcuts

IP Wall Share

Overview
Features
Configuration
Functions

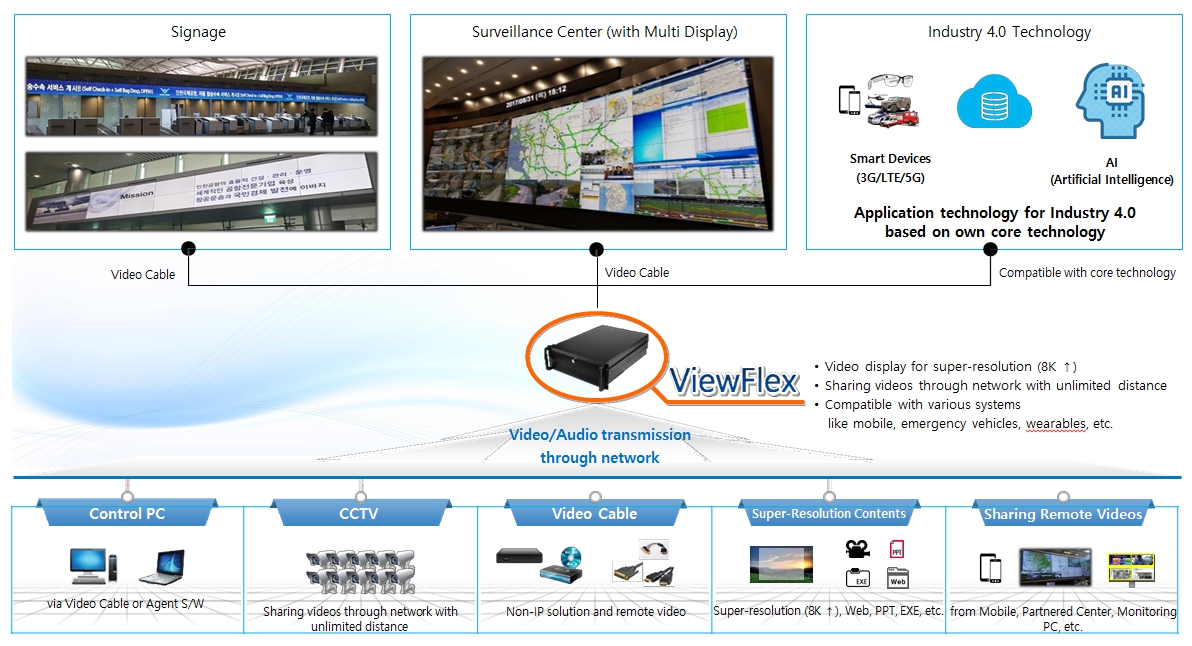

ViewFlex IP Wall is a system that receives video streams from all types of media through a network or video cable without any additional equipment and displays them on various types of displays in real time or provides a video sharing function for users at remote location as well as same network.

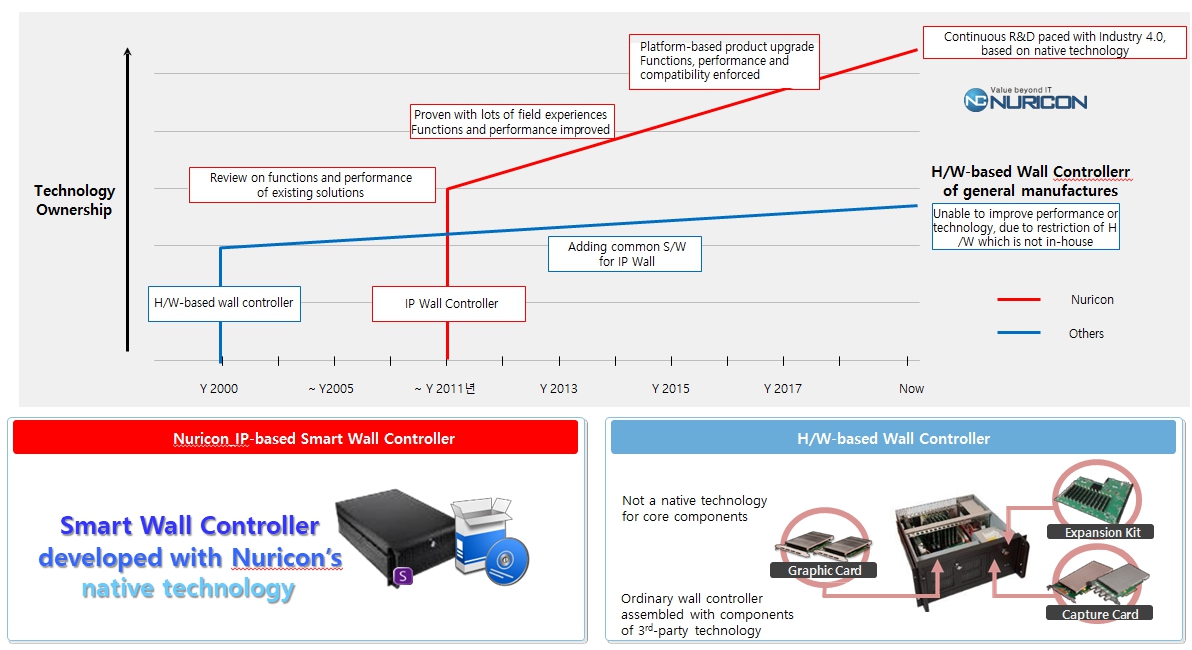

Unlike some products that rely on development without source technology, ViewFlex, IP smart wall controller, is developed from H/W to S/W by Nuricon's own technology, so that ViewFlex could be kept up to date in its function and performance with flexible customization which could also be a benefit for the 4th industrial revolution.

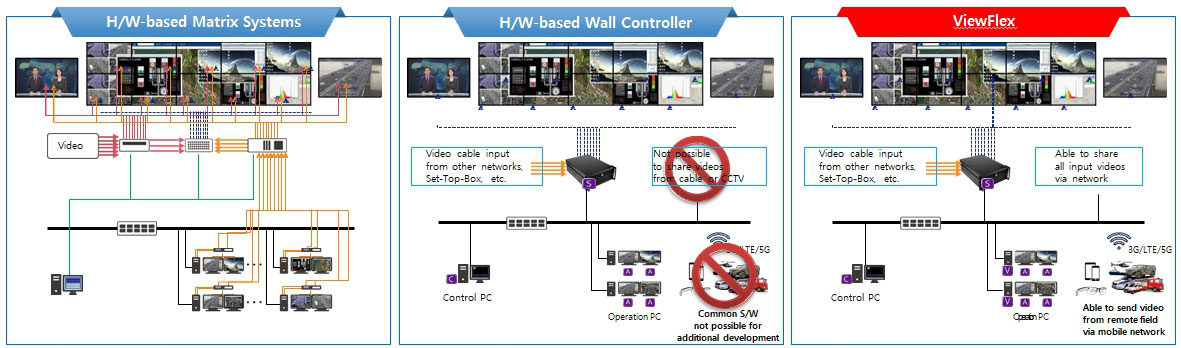

NO	Item	Matrix System (H/W-based)	Wall Controller (H/W-based)	ViewFlex
1	Method of video transmission	Simply video transmission via long-distance video cable Purchasing and installing cables, according to numbers of input/output matching	Developed for networked devices Adding common S/W in addition to the existing hardwired solution	Only designed for network environment To digitize, display and share videos from PCs, CCTVs, other networks, remote sites (via mobile and wearable), etc.
2	Features and performance	Same as the initial version	100% dependent on H/W which is not in-house (No additional development)	Continual improvement with native technology of Nuricon Expandable for Industry 4.0
3	Flexibility	Very limited Need to change the system or purchase additional solution, in exceeding the capacity of the existing	Limited Max. 68 input/output per ViewFlex	Unlimited expansion for all types of inputs/output sources Unlimited expansion by network sync
4	Video sharing	Not supported	Not supported	Able to share all types of input videos Distribution function based on proprietary CODEC technology
5	Compatibility	Simple transmission of video coming from other system	Simple transmission of video coming from other system	Easy to be compatible with other systems by API available for all functions

ViewFlex IP Wall is an IP wall controller developed purely with our own technology. It is the first network-based video display/sharing solution, and it is a product that continues to grow along with technological development.

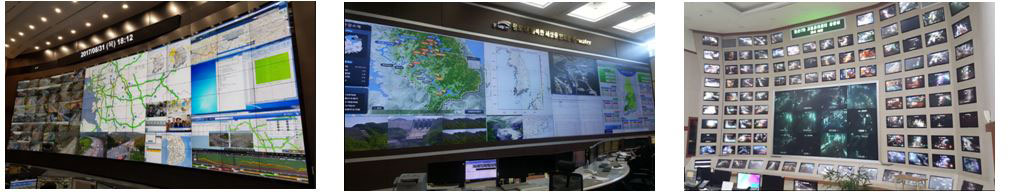

ViewFlex IP Wall is installed in the Surveillance Center to overall display and share Control PC screen, camera and file contents (PPT, video, web page, image, EXE) in the fields of traffic, firefighting, and security, etc., and enables administrators to be aware of situation as quick and accurate as possible.

Key Customers

	Overseas	Defense / Public	Government	Enterprise
Customers	Hungary Turkmenistan Cameroon Algeria Indonesia Malaysia China Japan etc.	Presidential Office National Police Agency Ministry of Defense Transportation Control Center Power Plants Railway Services Fire Station Airports etc.	Cyber Security Center Central Government Most of Local Governments etc.	Samsung Electronics LG Electronics SK Telecom KT Telecom Hyundai-Kia Korean Air Banks Data Centers etc. (Globally)

ViewFlex IP Wall can without restriction display videos of various input such as PC, CCTV, mobile, etc. on situation board on existing network environment and share those contents to authorized users without additional equipment.

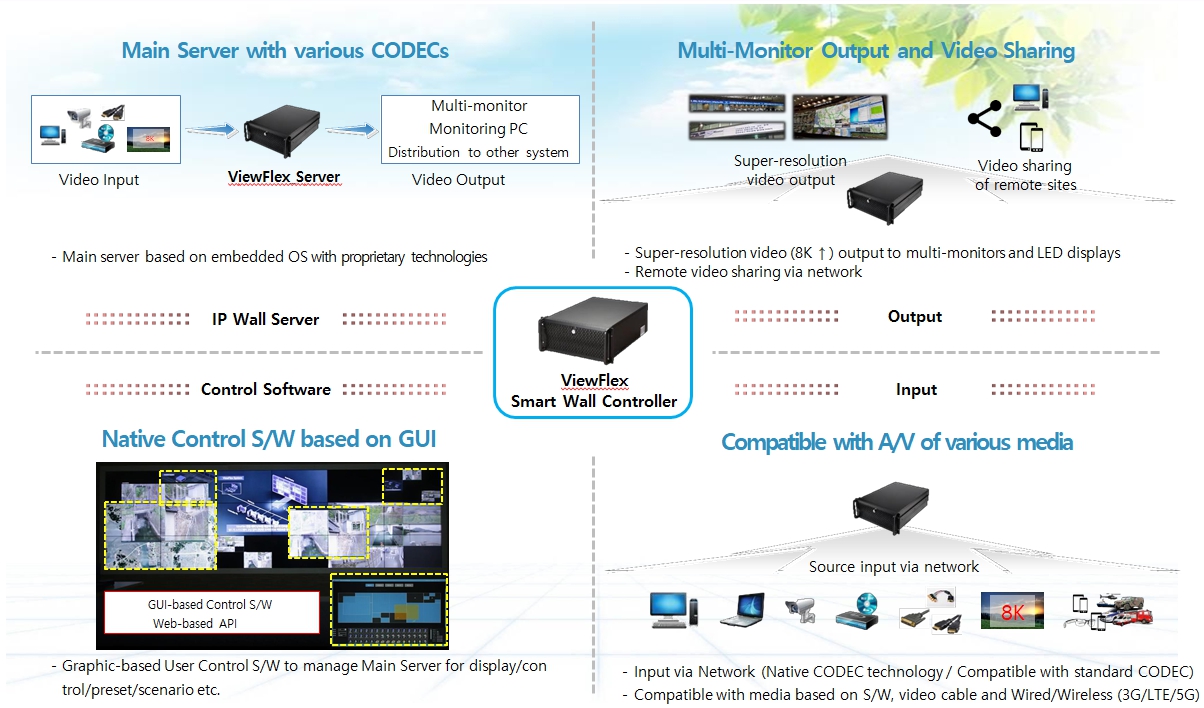

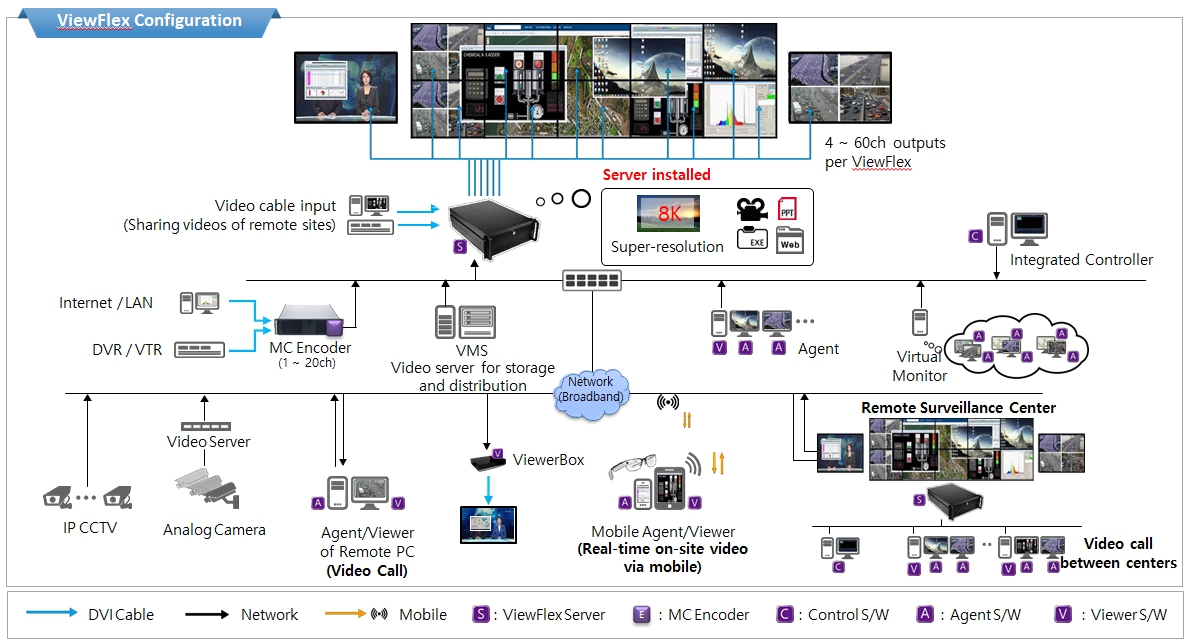

ViewFlex IP Wall, which provides a dedicated IP wall server that can connect and operate up to 60 displays and GUI-based dedicated control software, supports video/audio input of all media such as network, IP CCTV, analog video, mobile, etc. It also supports super-resolution video (8K ↑) output to multi-monitors and LED displays as well as remote video sharing via network.

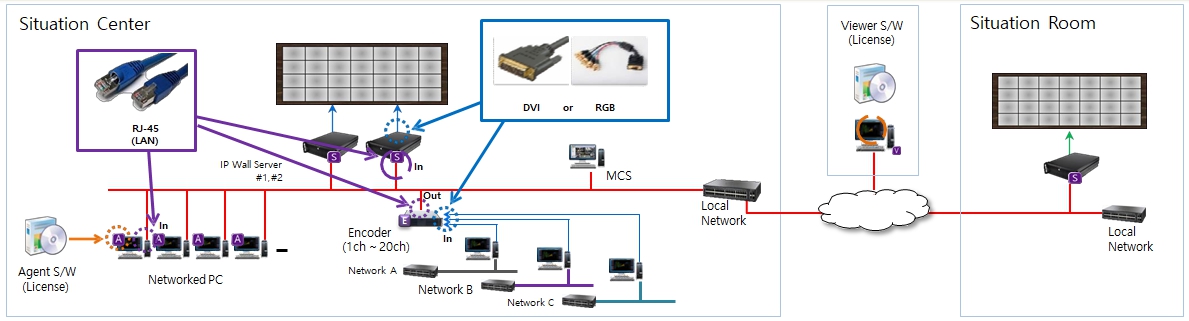

Component		Function	Description
Output	IP Wall Server	Video output to multi-display	To output videos received from Agent S/W and Encoder to multi-display via network
Output	Viewer S/W	To monitor video at operation PC	To monitor at remote PC via network videos received at IP Wall Server
Input	Agent S/W	To send video on PC screen via network	To transmit video on PC monitor to IP Wall through via network at the same network
Input	Encoder	To send video of separate network or Set-Top Box	To transmit videos of PCs (Governmental Network, Disaster Network) at separate networks and Set-Top-Box to IP Wall via network
MCS	Control S/W	To control videos displayed on situation board	To operate videos on situation board such as Number of video, Selecting and dividing videos to be displayed, Preset, Scenario, etc.
